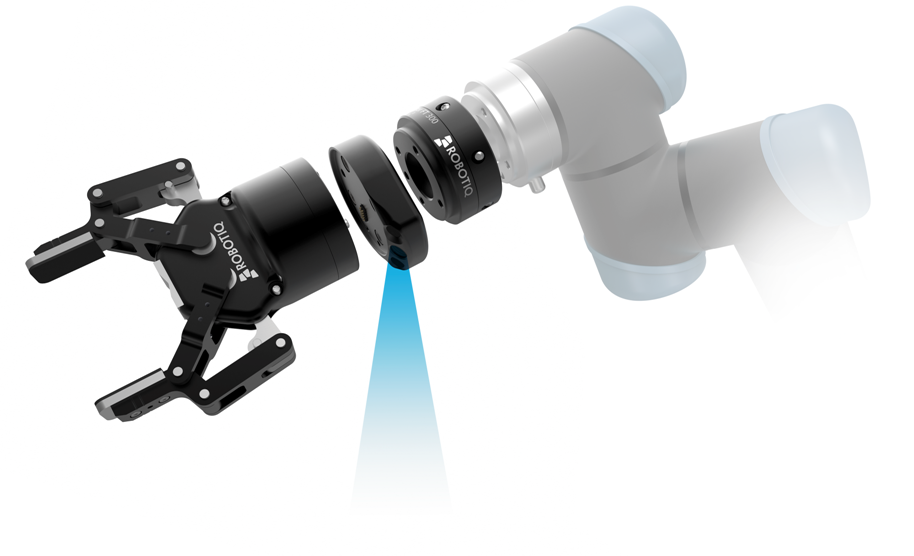

Robotiq vision camera.

Camera Plug and Play Vision System for Universal Robots Robotiq's Camera brings plug and play vision for Universal Robots.

5­minute setup time

Simple object teaching interface

Autonomous location of objects on work surface

No coding required

Robotiq’s Camera is specifically designed for Universal Robots.

Perfect fit for all UR wrists

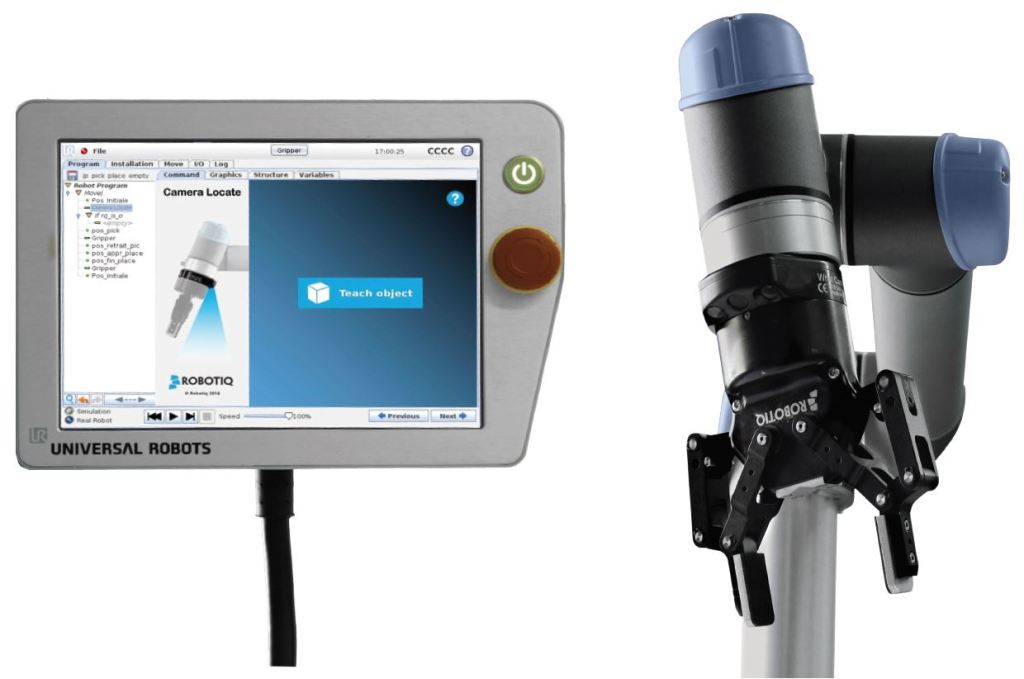

Software embedded on UR’s user interface, Polyscope

No custom wiring required

No external PC required to setup, program or run Camera

Robotiq wrist vision camera specifications

Robotiq camera specifications.

Robotiq vision camera specifications.

VISION SPECIFICATIONS:

Maximal resolution
5 Mpx @ 2fps 2560 X 1920

Maximal framerate
30 fps @ 0.3 Mpx 640 X 480

Active array size
2592 X 1944

Focus range
70 mm to infinity

MECHANICAL SPECIFICATIONS
Added height 13.5 mm
Distance between the robot flange and the tool base

Weight 160 g
Without the cable

Operating temperature Environmental protection
-10°C to 50°C

Water-tight

ELECTRICAL SPECIFICATIONS
Nominal supply voltage
24 V DC ±20%

Quiescent power consumption
1 W

Maximum power consumption
22 W
When light is on

Communication interface USB 2.0

Software package available for Universal Robots

Robotiq camera video.

Robotiq camera video.

Download Universal-Robots and Robotiq wrist vision camera demo video
