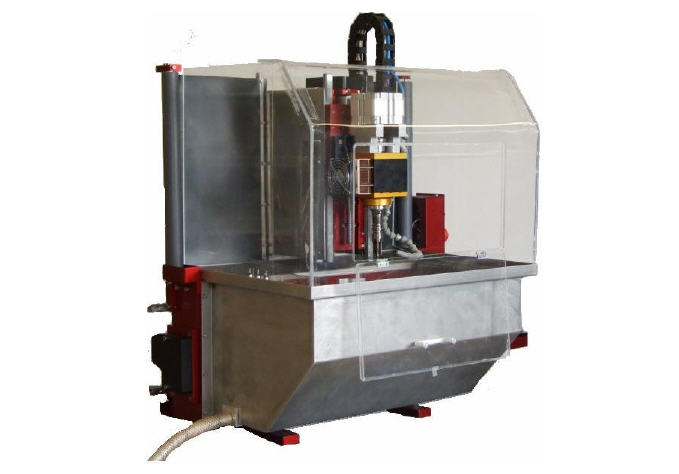

Levil Desktop and Tabletop cnc milling machine

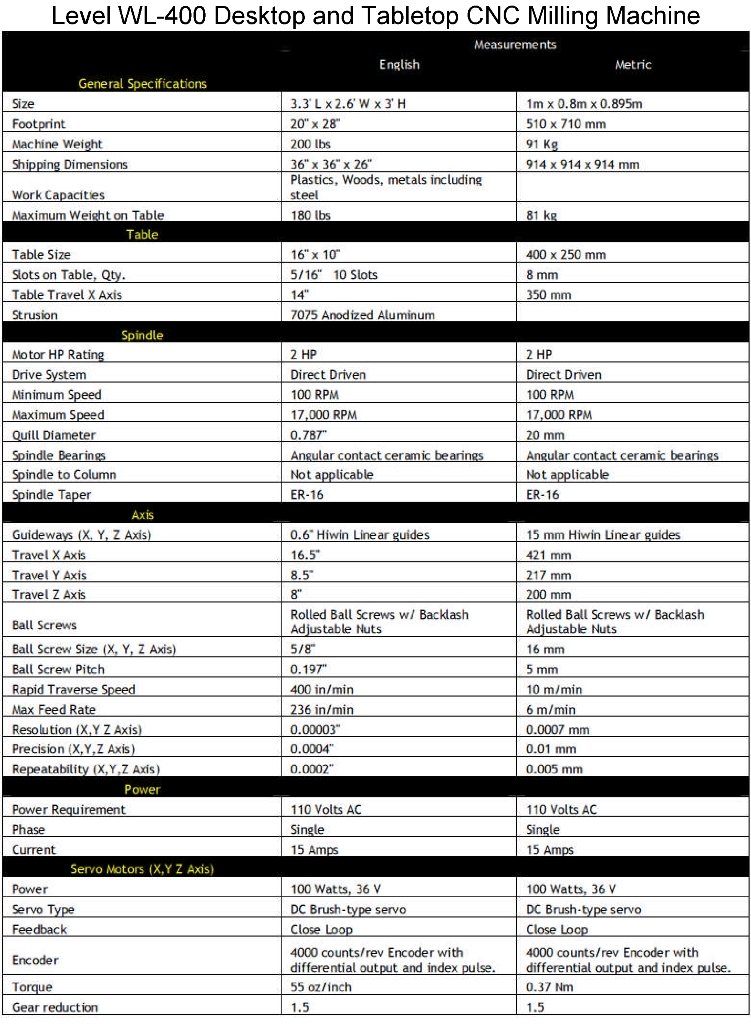

WL-400 specification.
Dimension: 1000 x 800 x 895 mm
Machine weight: 91 kg
Footprint: 510 x 710 mm
Shipping Dimensions: 914 x 914 x 914 mm
Work Capacities: Plastic, Woods, Metals Including Steel
Maximum weight on table: 81 kg
Table
Table size: 400 x 250 mm
Slots on Table,Qty: 8 mm
Table Travel X Axis: 350 mm
Strusion: 7075 Anodized Aluminium
Spindle
Motor HP Rating: 2 HP
Drive System: Direct Driven
Minimum Speed: 100 RPM
Maximum Speed: 17000 RPM
Quill Diameter: 20 mm
Spindle Bearings: Angular contact ceramic bearings
Spindle to Column: N/A
Spindle Taper: ER-16
Axis
Guideways (X, Y, Z Axis): 15 mm Hiwin Linear guides
Travel X Axis: 421 mm
Travel Y Axis: 217 mm
Travel Z Axis: 200 mm
Ball Screws: Rolled Ball Screws w/Backlash Adjustable Nuts
Ball Screw Size (X, Y, Z Axis): 16 mm
Ball Screw Pitch: 5 mm
Rapid Traverse Speed: 10 m/min
Max Feed rate: 6 m/min
Resolution (X, Y, Z Axis): 0.0007 mm
Precision (X, Y, Z Axis): 0.01 mm
Repeatability (X, Y, Z Axis): 0.005 mm
Power
Power Requirement: 110/220 Volt AC
Phase: Single
Current: 15 Amps
Servo Motors (X, Y, Z Axis)
Power: 100 Watts, 36 V
Servo Type: DC Brush-type servo
Feedback: Close loop
Encoder: 4000 counts/rev Encoder with differential output and index pulse.
Torque: 0.37 Nm
Gear reduction: 1.5
