Save  file.

After writing a few lines of the program it is advisable the save your work. As explained early in the manual it is good to assign a USB drive for this purpose.

Press the “File” menu and choose “Save As …”.

universal_robots_zacobria_save_file_1
universal_robots_zacobria_save_file_2

A Screen with file structure and files already present on the Hard drive (Flashcard) appears and the USB drive is already shown as a Directory. The controller recognizes the USB drive automatically.

In this case the USB drive has the name “”NANO_1G_F32” which was a name I give it while it was sitting on my office computer, but this can be any legal computer file name. Sometimes a USB drive has a default name when it is purchased and sometimes it is just without a name so you might see other names or even “unknown”. This is not important as long you know it is the USB drive you inserted to the robot controller.

Press on the name “NANO_1G_F32” to go into that directory i.e. go to the drive.

universal_robots_zacobria_save_file_3

If the USB drive is empty there are no directories on the USB drive and you can use the scissor symbol to create a directory. If there is already directories from where it was in your office computer then will be shown on the Screen and you can chose to go to the sub directory. Here we will create a sub directory.

universal_robots_zacobria_save_file_4

Press “Create Directory …”

The controller suggests “new dir” as a name, but better to choose something else that says something about the content of the directory.

universal_robots_zacobria_save_file_5

Press behind the new dir name and use the << button to delete the “new dir” name.

universal_robots_zacobria_save_file_6
universal_robots_zacobria_save_file_7

Use the onscreen keyboard to create a new name e.g. Test in this case.

universal_robots_zacobria_save_file_8

Press “OK” when finish the name.

A new directory called “Test” appears. Press on the “Test” directory to go into it.

universal_robots_zacobria_save_file_9

Press the on Screen keyboard symbol to type in your desired file name for your program. In this case we call it My_first_program.

If you have connected a keyboard along with the mouse, then you can use the keyboard to key in which is much more convenient.

universal_robots_zacobria_save_file_10

Press “OK” when finish typing. Notice after pressing “OK” the file name is listed below on the Screen.

universal_robots_zacobria_save_file_11

Press “Save” to save the file and a popup messages appear to confirm the save of file.

universal_robots_zacobria_save_file_12

After the controller finish the save it returns to the Program tree we were working on and we can continue programming which will be explained in the next chapters.

Load a program from USB drive.

universal_robots_zacobria_load_file_1

To load back a program that we previously have saved on the USB drive press the “File” menu – choose “Load”. Press on the name for the USB drive (in my case NANO_1G_F32). If you choose to create sub directories then go all the way down to your file by pressing the sub directories until you see your file you wish to load.

universal_robots_zacobria_load_file_2

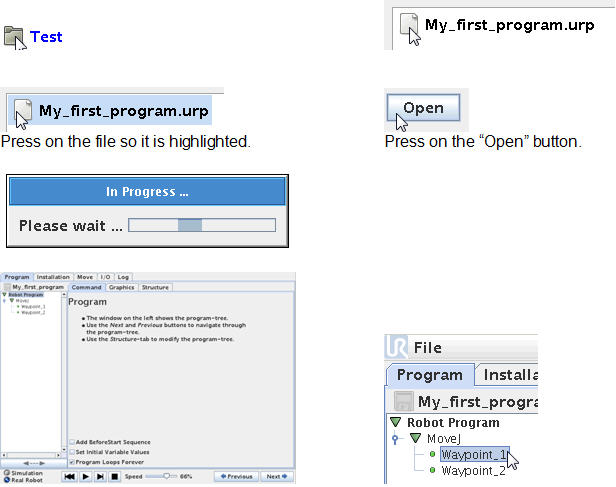

Press on the file so it is highlighted.                                Press on the “Open” button.

You will see your program reload into the Program tree block and you can continue to edit the program or simply use the program if is a finish ready made program.
