X, Y and Z positions and angle positions.

The UR robot is a 6 axis robot so the calculation of the robot coordinates is a complex equation that involves rotation vectors as well. It might seems simple to say “I just want the robot to go to a X, Y Z position – yes but then there are many different Pose the robot can have at that exact  X, Y, Z position – for example should the head be from the left – or right – or in an angle or upside down from below – they can all reach the exact same X, Y Z position. Therefore the angle or rotation of the tool head can be different and therefore thrown into the equation.

For the better understanding then focus on the X, Y and Z position first.

universal_robots_zacobria_xyz_position_1

Just consider the robot in an X, Y, and Z coordinate system.

This shows the robot at X = 0 mm, Y = 430 mm and Z = 400 mm. Easy to see in the coordinate system. And this can also be seen on the Information window in the Move screen.

In this case the X, Y, Z coordinates is shown with the base as reference.

Don’t worry too much about the Rx, Ry and Rz yet – they will be explained later. But it is important to understand and to sink in that  – the X, Y and Z coordinates are seen from the Base position in this case (can actually be changed, but that will complicated the explanation) – whereas the Rotation of the Tool head is seen from the tool head position itself. This is paramount to understand otherwise it is very easy to get confused.

Maybe consider your arm – the finger tip position is the X, Y and Z coordinates from your body – whereas the Rotation of your wrist is the Rx, Ry and Rz – with the X, Y and Z axis shifted to your fingertip.

X, Y, Z vector versus Joint angles.

universal_robots_zacobria_xyz_position_2
universal_robots_zacobria_xyz_position_5

This part of the screen shows the Joint angle of each joint. This does not directly tell where the robot head is position in the space. Note each is expressed in degrees.

Each joint can turn + 360 degrees and -360 degrees i.e. a total of 720 degrees.

universal_robots_zacobria_xyz_position_6

The part of the screen shows the tool Position as a 6 axis vector with the X, Y, Z position in mm seen from the base as reference.

Whereas the tool head rotation is seen as angles expressed in Radians as seen from the tool head point as reference.

As seen above the Joint angles are shown in degrees, but this could also be expressed in Radians. And this is important to notice because later when used in script programming – these joint angles has to be provided in Radians.

Formula for converting Radians to degrees on UR and degrees to Radians.

(Radian / 3.14) x 180 = The Degree shown in the Move Screen.

3.14 x (The Degree shown in the Move Screen) / 180 = Radian

RX, RY and RZ rotation vector movement.

The position of RX, RY and RZ is a Rotation Vector based on the physics of the robot i.e. the length of the arms and joints and the rotation of the joints.

The calculation of the tool head position is equations where these factors are a part. The normal tool head position facing down is 180 degree from the origin of these vectors. So to illustrate the changes to RX, RY and RZ then rotate the tool head to face straight up so all RX, RY and RZ can be 0.

Put the robot in this pose i.e. X = 0, Y = 400 mm, Z = 600 mm, RX = 0, RY = 0, RZ =0

universal_robots_zacobria_xyz_position_7

Robot Pose.

universal_robots_zacobria_xyz_position_8

The RX, RY and RZ can be changed Individually by these controls.

universal_robots_zacobria_xyz_position_9

The RX, RY and RZ can also be changed by key in the value of the desired angle.

universal_robots_zacobria_xyz_position_10

Current value for RX.

universal_robots_zacobria_xyz_position_11

Type in the desired angle in radians and click OK.

universal_robots_zacobria_xyz_position_12

Press Auto the perform the move.

universal_robots_zacobria_xyz_position_13

The robot tool head has turned around the X axis.

Using the Arrow keys for the tool head.

universal_robots_zacobria_xyz_position_14

Set the robot in position X = 0, Y = 400 mm, Z = 600 mm, RX = 0, RY = 0, RZ =0

universal_robots_zacobria_xyz_position_15

Press one of the X rotation arrows.

universal_robots_zacobria_xyz_position_16

The robot has turned around the X axis

universal_robots_zacobria_xyz_position_17

Set the robot in position X = 0, Y = 400 mm, Z = 600 mm, RX = 0, RY = 0, RZ =0

universal_robots_zacobria_xyz_position_18

Press one of the Y rotation arrows.

universal_robots_zacobria_xyz_position_19

The robot has turned around the Y axis

universal_robots_zacobria_xyz_position_20

Set the robot in position X = 0, Y = 400 mm, Z = 600 mm, RX = 0, RY = 0, RZ =0

universal_robots_zacobria_xyz_position_21

Press one of the Z rotation arrows.

universal_robots_zacobria_xyz_position_22

The robot has turned around the Z axis (Not easy to see on this graphics, but only the last joint with the connector has turned.

(Better to see on a physical robot).

universal_robots_zacobria_xyz_position_23

When the robot tool head is facing down the RX is turned 180 degree i.e. 3.14 radians.

universal_robots_zacobria_xyz_position_24

When the robot head is turned around the Y axis then RX and RZ is changing value because the entire equation involve the 180 Degree offset of the tool head.

Move to X, Y, Z, Rx, Ry, Rz position.

In these examples the Feature is shown from a “Base” perspective i.e. set the Feature to “Base” view.

The X, Y and Z are the position of the robot tool head in mm as in a coordinate system.

Rx, Ry and Rz are the orientation of the Tool head as an angle in Radians around the axis mentioned after the “R” i.e. Rx is the angle around the X axis in Radians.

universal_robots_zacobria_xyz_position_25

X = 0 mm, Y = 430 mm, Z = 400 mm

universal_robots_zacobria_xyz_position_26

X = 0 mm                                       Y = 430 mm                                    Z = 400 mm

Turn the robot tool around an Axis.

Observe how there is a Red, Green and Blue line below the robot graphics. The Red line illustrates the X axis, the Green line illustrates the Y axis and the blue line illustrates the Z axis. These entire Axes are seen from the tool head point.

On the left side of the screen under “Move Tool” is the same colour used on the arrows to indicate which axis is moved.

universal_robots_zacobria_xyz_position_27
universal_robots_zacobria_xyz_position_28

Pay attention to these arrows.
Focus now only on these arrows and press the Red arrow on the left side.

Turn the Tool head around the X axis (Rx).

universal_robots_zacobria_xyz_position_29

Turn the Tool head back around the X axis (Rx).

universal_robots_zacobria_xyz_position_30

Notice how the robot turn the tool head along the X axis.

universal_robots_zacobria_xyz_position_31

Turn the Tool head back around the X axis (Rx)

universal_robots_zacobria_xyz_position_32

Notice how the robot turn the tool head along the X axis.

Turn the Tool head around the Y axis (Ry).

universal_robots_zacobria_xyz_position_33

Turn the Tool head back around the Y axis (Ry).

universal_robots_zacobria_xyz_position_34

Notice how the robot turn the tool head along the Y axis.

universal_robots_zacobria_xyz_position_35

Turn the Tool head back around the Y axis (Ry).

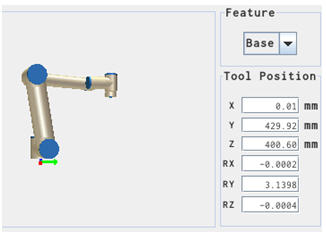

universal_robots_zacobria_xyz_position_36

Notice how the robot turn the tool head along the Y axis.

Turn the Tool head around the Z axis (Rz).

universal_robots_zacobria_xyz_position_37

Turn the Tool head back around the Z axis (Rz).

universal_robots_zacobria_xyz_position_38

Notice how the robot turn the tool head along the Z axis.

(Not easy to see on the graphics because only the last joint turns).

universal_robots_zacobria_xyz_position_39

Turn the Tool head back around the Z axis (Rz).

universal_robots_zacobria_xyz_position_40

Notice how the robot turn the tool head along the Z axis.

(Not easy to see on the graphics because only the last joint turns).

The X, Y, Z, Rx, Ry, Rz will change when the tool head is manipulated according to the physics of the robots arms and body structure.

Turn the robot tool around the Y axis (Ry).

Instead of using the arrows as manipulators, it is also possible to key in the angle of the tool head position. This is easiest to understand when the robot is aligned along the X and the Y axis. In first example the robot is aligned along the Y axis i.e. X = 0.

universal_robots_zacobria_xyz_position_41

Press the Ry bar.                                             Change from 3.14                 to 2.00 Radians.

universal_robots_zacobria_xyz_position_42

Press “Auto” button to perform the move. Ry now changed to 2.00 Radians.

universal_robots_zacobria_xyz_position_43

Robot at Ry = 3.14 Rad.    Robot at Ry = 2.00 Rad.   Robot at Ry = 2.00 Rad


 Change the robot back to Ry = 3.14 Radians.

universal_robots_zacobria_xyz_position_44

Press the Ry button and set Ry to 3.14.

universal_robots_zacobria_xyz_position_45

Try just a small change e.g. set the Ry to 3.1. Notice how the robot did the move immediately without the need for pressing “Auto” because of the small change.

universal_robots_zacobria_xyz_position_46

Robot now at Ry = 3.1 Radian (Toolhead slightly tilted).

universal_robots_zacobria_xyz_position_47

Set the robot back to Ry = 3.14.

Next example will show the robot aligned along the X axis i.e. Y = 0. Change the Robot to the Y = 0 position.

universal_robots_zacobria_xyz_position_48

Use the “Base” arrow bar to move the robot over to the Y = 0 position.

The robot swing over the position the toll head at the X axis i.e. Y = 0.

Notice how the Rx and Ry also change along the way because the tool head also move.

universal_robots_zacobria_xyz_position_49

Change the Ry = 0.

universal_robots_zacobria_xyz_position_50

Change the Rx = 3.14

universal_robots_zacobria_xyz_position_51

Robot at Y = 0 and the tool head align with the X axis.

universal_robots_zacobria_xyz_position_52

Press the Rx bar.    Change the Rx = 2.00.       Press “Auto” to perform move.

universal_robots_zacobria_xyz_position_53

The tool head has now turned around the X axis.

universal_robots_zacobria_xyz_position_54

Rotated around the X axis.

Move the Robot by X, Y, Z positions via Script.

Move the tool head around the Y axis.

In this example the Robot is at X = 0, Y = 430 and Z = 400 with the tool head at Ry = 3.14 Radians.

universal_robots_zacobria_xyz_position_55

Then this script command is send to the Robot.

s.send (“movej([-1.8263219632699421, -1.7319098497843228, 1.7991931614989278, -1.6389153321983159, -1.5723347175650684, 2.8868157860256334], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

time.sleep(10)

s.send (“movej(p[0.0000000000000000, 0.4300000000000000, 0.4000000000000000, 0.0000000000000000, 2.0000000000000000, 0.0000000000000000], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

Note:

The “p” (here highlighted) in front of the parameter change from Joint position move to a Pose move.

In this example the tool head is moved from Radian 3.14 to Radian 2.0 around the Y axis.

Notice how the X, Y and Z remain the same, but how the RY is changed from 3.14 to 2.00 by the script command below.

Using this description in the Script manual as Inspiration.

universal_robots_zacobria_xyz_position_56

Notice hot he Tool head has turned around the Y axis.

universal_robots_zacobria_xyz_position_57

Move the tool head along the Y axis.

It is also possible to move in a direction of an axis. In this example the robot is moved 200 mm in Y axis direction.

s.send (“movej([-1.8263219632699421, -1.7319098497843228, 1.7991931614989278, -1.6389153321983159, -1.5723347175650684, 2.8868157860256334], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

time.sleep(10)

s.send (“movej(p[0.0000000000000000, 0.4300000000000000, 0.4000000000000000, 0.0000000000000000, 2.0000000000000000, 0.0000000000000000], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

time.sleep(10)

s.send (“movej(p[0.0000000000000000, 0.6300000000000000, 0.4000000000000000, 0.0000000000000000, 2.0000000000000000, 0.0000000000000000], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

See the result below

universal_robots_zacobria_xyz_position_58

Complete program for moving the robot 200 mm in Y axis. (Note the change from 0.43000 to 0.63000.

# Echo client program
import socket
import time

HOST = “192.168.0.9”    # The remote host
PORT = 30002              # The same port as used by the server
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_analog_inputrange(0, 0)” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_analog_inputrange(1, 0)” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_analog_outputdomain(0, 0)” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_analog_outputdomain(1, 0)” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_tool_voltage(24)” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_runstate_outputs([])” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_payload(0.0)” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))
s.send (“set_gravity([0.0, 0.0, 9.82])” + “\n”)
data = s.recv(1024)
s.close()
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((HOST, PORT))

s.send (“movej([-1.8263219632699421, -1.7319098497843228, 1.7991931614989278, -1.6389153321983159, -1.5723347175650684, 2.8868157860256334], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

time.sleep(10)
s.send (“movej(p[0.0000000000000000, 0.4300000000000000, 0.4000000000000000, 0.0000000000000000, 2.0000000000000000, 0.0000000000000000], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

time.sleep(10)
s.send (“movej(p[0.0000000000000000, 0.6300000000000000, 0.4000000000000000, 0.0000000000000000, 2.0000000000000000, 0.0000000000000000], a=1.3962634015954636, v=1.0471975511965976)” + “\n”)

data = s.recv(1024)
s.close()
print (“Received”, repr(data))
